Globe Valves Reduced Flow Resistance

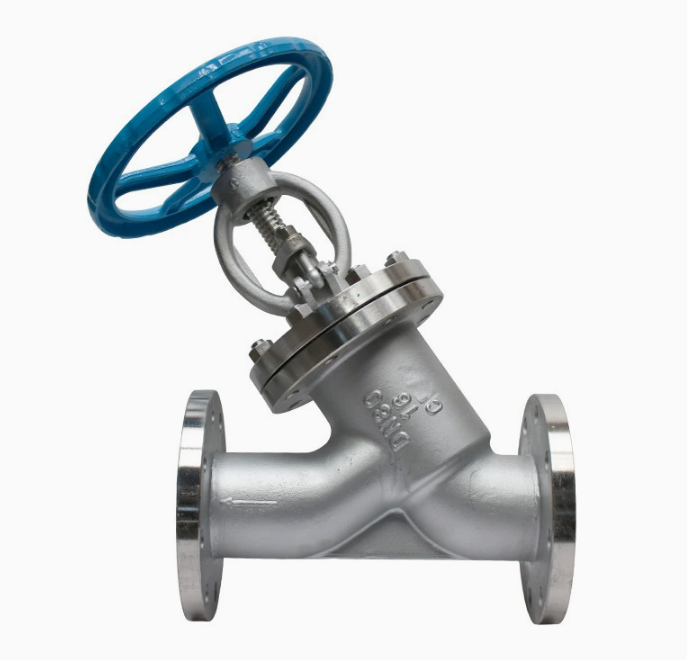

Y Pattern Globe Valve Class 150-1500LB
Y-Pattern Globe Valve for steam, condensate and high-velocity process flow, available in 1/2–16 in, Class 150–1500, with RF, RTJ or BW connections and configurable operation.
Quick Specifications
- Type
- Y-Pattern Globe Valve
- Size
- 1/2–16 in
- Material
- WCB / WC6 / CF8M
- Pressure
- Class 150–1500
- Connection
- RF, RTJ or BW
- Temperature
- -29 to 540°C
Product Details
The inclined stem and streamlined Y-pattern body reduce turbulence and pressure loss compared with a conventional T-pattern globe valve. Guided trim and hardfaced seating are available for high-velocity steam and continuous throttling. This y-pattern globe valve is designed for steam, condensate and high-velocity process flow and can be supplied in 1/2–16 in with RF, RTJ or BW connections. Body and trim materials, seat or sealing system, operator, coating and documentation can be customized to the actual medium, pressure, temperature and project specification. Manual, gearbox, pneumatic, hydraulic or electric operation is available where technically applicable. Dimensional inspection, shell and seat pressure testing, material certificates and application-specific inspection records can be provided with the order.
Specifications
| Parameter | Value |
|---|---|
| Model | GS-GLV-Y600 |
| Design Standard | ASME B16.34 |
| Size Range | 1/2–16 in |
| Pressure Rating | Class 150–1500 |
| Body Material | WCB / WC6 / CF8M |
| End Connection | RF, RTJ or BW |
| Temperature Range | -29 to 540°C |
| Typical Application | Steam, condensate and high-velocity process flow |
| Operation | Manual, gearbox or automated |
| Documentation | Pressure test and material reports available |
