Gate Valves Knife gate

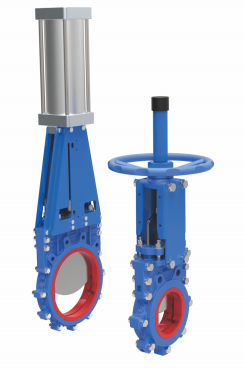

Bi-directional Seal PU-Lined Knife Gate Valve, DN50-700
Polyurethane-lined bi-directional seal knife gate valve for abrasive slurry service.
Quick Specifications
- Type
- Knife gate valve
- Series
- QP Series
- Seal Direction
- Bi-directional
- Configuration
- Wafer, split-body, PU-lined
- Connection
- Wafer
- Operation
- Manual, pneumatic, electric, hydraulic, gear, lever
Product Details
A split-body, cavity-free knife gate valve with polyurethane lining and bi-directional sealing for abrasive slurry, mineral slurry and powder handling. The PU lining provides wear resistance in solids-laden service.
Specifications
| Parameter | Value |
|---|---|
| Model / Series | QPZ73X |
| Product Family | Knife Gate Valve |
| Catalog Name | Bi-directional Seal PU-Lined Knife Gate Valve |
| Size Range | DN50 - DN700 |
| Pressure Rating | 1.6 / 1.0 / 0.8 MPa |
| Body / Main Material | F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40 |
| Seat / Seal Material | Polyurethane (PU); Packing aramid / high-water fiber / rubber / PTFE |
| End Connection | Wafer; DIN PN10/PN16, 150LB, JIS 10K, Table E/D |
| Actuation | Handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear box, lever |
| Typical Application | Slurry, mineral slurry, municipal sewage treatment, sugar industry, powder handling, papermaking, pharmaceuticals, chemical industry |
FAQ
What should be confirmed before ordering?
Confirm the model, DN size, body/gate material, seat material, pressure class, flange standard, medium and actuator option against the selected catalog drawing.
Does one series cover all materials and sizes?
No. Materials, dimensions and pressure limits depend on the exact model suffix and DN size shown in the catalog material and dimension tables.
Can an actuator be supplied?
Manual, pneumatic, electric and other actuation options are catalog-dependent. Confirm the actuator type, control mode and mounting details for the final valve selection.
Which documents should be requested?
Request the current dimensional drawing, material list, inspection requirement and final technical confirmation for the selected model and size.
