Check Valves SANITARY TRI-CLAMP

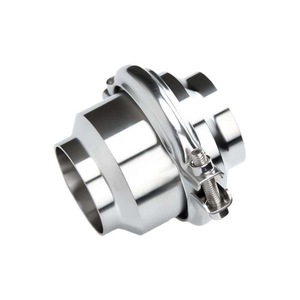

Sanitary Tri-Clamp Check Valve, SS304/SS316L
Sanitary SS304/SS316L tri-clamp check valve for hygienic reverse-flow prevention.
Quick Specifications
- Type
- Sanitary tri-clamp spring check valve
- Size
- 1/2-6 in (DN10-DN150)
- Material
- SS304 or SS316L wetted body and disc; SS304/316 spring; silicone or EPDM seal
- Pressure
- Up to 10 bar at ambient temperature, size dependent
- Connection
- Tri-clamp sanitary ferrules
- Temperature
- -10 to 95 °C with standard elastomer; confirm CIP/SIP seal requirement
Product Details
A spring-loaded sanitary check valve with quick-release tri-clamp ends for cleanable process lines. The selected seal, surface finish and spring pressure should match the required hygienic and cleaning process conditions.
Specifications
| Parameter | Value |
|---|---|
| Model | SAN-CV-TC-304/316L |
| Design Standard | 3-A / DIN / SMS / ISO sanitary connection options |
| Size Range | 1/2-6 in (DN10-DN150) |
| Pressure Rating | Up to 10 bar at ambient temperature, size dependent |
| Body Material | SS304 or SS316L wetted body and disc; SS304/316 spring; silicone or EPDM seal |
| End Connection | Tri-clamp sanitary ferrules |
| Temperature Range | -10 to 95 °C with standard elastomer; confirm CIP/SIP seal requirement |
| Typical Application | Food, beverage, dairy, brewery and hygienic process piping |
| Operation | Automatic spring-loaded disc operation |
| Inspection & Documentation | Hydrostatic shell and seat test; dimensional drawing, material certificate and certificate of conformity available on request |
FAQ
How should this valve be configured for the application?
Specify 304 or 316L, clamp standard, seal material, finish and required CIP/SIP conditions. Final selection must be verified against the actual medium, pressure, temperature, flow direction and applicable piping standard.
Does this check or foot valve need an actuator?
No. Check and foot valves operate automatically from flow and differential pressure; select the correct cracking pressure, orientation and internal design for the service.
What documents can be supplied for a project order?
Material certificate, hydrostatic test record, dimensional drawing, packing list and certificate of conformity can be provided when specified in the order.
Do pressure and temperature ratings apply to every configuration?
No. Ratings depend on the selected body material, seat, trim, end connection and service fluid. Confirm the final pressure-temperature limit with the selected supplier before purchase.
