Gate Valves Knife gate

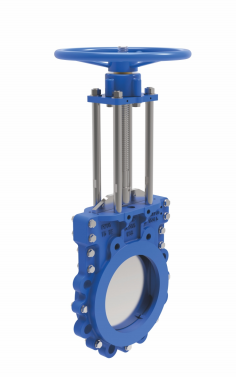

Bi-directional Seal Knife Gate Valve, DN50-1000
Split-body, cavity-free, medium-pressure bi-directional seal knife gate valve.
Quick Specifications
- Type
- Knife gate valve
- Series
- QMC Series
- Seal Direction
- Bi-directional
- Configuration
- Wafer, split-body
- Connection
- Wafer
- Operation
- Manual, pneumatic, electric, hydraulic, gear, lever
Product Details
A split-body, cavity-free knife gate valve with bi-directional sealing for medium-pressure service. Available in manual and pneumatic configurations with a wide size range and selectable carbon/stainless steel materials.
Specifications
| Parameter | Value |
|---|---|
| Model / Series | QMCZ73X |
| Product Family | Knife Gate Valve |
| Catalog Name | Bi-directional Seal Knife Gate Valve |
| Size Range | DN50 - DN1000 |
| Pressure Rating | PN10 (measured 2.6 - 1.0 MPa) |
| Body / Main Material | WCB, CF8, CF8M, CF3M (also F55, F53, 2205, GGG40) |
| Seat / Seal Material | NBR, EPDM, FKM; Packing aramid / high-water fiber / rubber / PTFE |
| End Connection | Wafer; JB/T8691-2013, GB/T9113.1-2010, ASME B16.5/B16.47, AS2129 Table D/E; DIN PN10/PN16, 150LB, JIS 10K |
| Actuation | Handwheel, gear, pneumatic, electric, hydraulic, sprocket, electro-hydraulic, lever |
| Typical Application | Slurry, municipal sewage treatment, sugar industry, papermaking, pharmaceuticals, chemical industry, oil products |
FAQ
What should be confirmed before ordering?
Confirm the model, DN size, body/gate material, seat material, pressure class, flange standard, medium and actuator option against the selected catalog drawing.
Does one series cover all materials and sizes?
No. Materials, dimensions and pressure limits depend on the exact model suffix and DN size shown in the catalog material and dimension tables.
Can an actuator be supplied?
Manual, pneumatic, electric and other actuation options are catalog-dependent. Confirm the actuator type, control mode and mounting details for the final valve selection.
Which documents should be requested?
Request the current dimensional drawing, material list, inspection requirement and final technical confirmation for the selected model and size.
