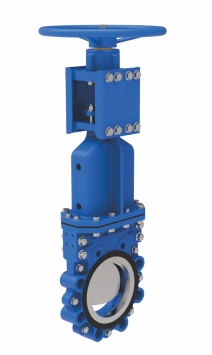

Bi-directional Seal Knife Gate Valve, DN50-2000
Split-body bi-directional seal knife gate valve for solids-laden media to DN2000.
Quick Specifications
- Type
- Knife gate valve
- Series
- QMD Series
- Seal Direction
- Bi-directional
- Configuration
- Wafer, split-body
- Connection
- Wafer
- Operation
- Manual, pneumatic, electric, hydraulic, gear, lever
Product Details
A split-body knife gate valve with bi-directional sealing for coal and slag discharge, sewage, sugar, paper, pharmaceutical, petroleum and chemical services. Working pressure reduces progressively for larger sizes.
Specifications
| Parameter | Value |
|---|---|
| Model / Series | QMDZ73X |
| Product Family | Knife Gate Valve |
| Catalog Name | Bi-directional Seal Knife Gate Valve |
| Size Range | DN50 - DN2000 |
| Pressure Rating | 1.6 / 1.0 / 0.8 / 0.6 / 0.4 MPa |
| Body / Main Material | F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40 |
| Seat / Seal Material | NBR, EPDM, FKM; Packing aramid / high-water fiber / rubber / PTFE |
| End Connection | Wafer; GB/T9113.1-2010, ASME B16.5 (2"-24"), ASME B16.47 (26"-60"), AS2129 Table D/E |
| Actuation | Handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear, lever |
| Typical Application | Coal & slag discharge, municipal sewage, sugar, paper, pharmaceutical, petroleum and chemical industries |
FAQ
What should be confirmed before ordering?
Confirm the model, DN size, body/gate material, seat material, pressure class, flange standard, medium and actuator option against the selected catalog drawing.
Does one series cover all materials and sizes?
No. Materials, dimensions and pressure limits depend on the exact model suffix and DN size shown in the catalog material and dimension tables.
Can an actuator be supplied?
Manual, pneumatic, electric and other actuation options are catalog-dependent. Confirm the actuator type, control mode and mounting details for the final valve selection.
Which documents should be requested?
Request the current dimensional drawing, material list, inspection requirement and final technical confirmation for the selected model and size.
