Check Valves PLASTIC FOOT VALVE

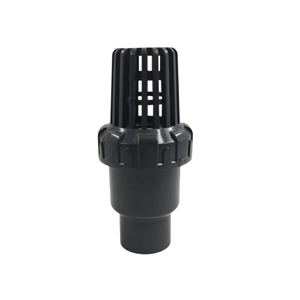

PVC/CPVC Foot Valve with Strainer, PN10/16
PVC/CPVC foot valve with strainer for PN10/16 corrosion-resistant pump suction lines.
Quick Specifications
- Type
- PVC/CPVC foot valve with strainer
- Size
- DN15-DN100 (1/2-4 in)
- Material
- UPVC or CPVC body and strainer; EPDM or FPM seal
- Pressure
- PN16 for DN15-DN50; PN10 for DN65-DN100
- Connection
- Socket or threaded end; flange option by configuration
- Temperature
- UPVC: 0 to 60 °C; CPVC: up to 90 °C, with pressure derating
Product Details
A plastic foot valve with a screened intake that prevents reverse drainage of the suction line. The polymer and seal should be selected for the solution chemistry, temperature and required connection method.
Specifications
| Parameter | Value |
|---|---|
| Model | FV-PVC/CPVC-PN10/16 |
| Design Standard | Applicable plastic-pipe socket/thread standard |
| Size Range | DN15-DN100 (1/2-4 in) |
| Pressure Rating | PN16 for DN15-DN50; PN10 for DN65-DN100 |
| Body Material | UPVC or CPVC body and strainer; EPDM or FPM seal |
| End Connection | Socket or threaded end; flange option by configuration |
| Temperature Range | UPVC: 0 to 60 °C; CPVC: up to 90 °C, with pressure derating |
| Typical Application | Chemical transfer, water treatment and corrosion-resistant pump suction |
| Operation | Automatic ball or poppet foot-valve operation with strainer |
| Inspection & Documentation | Hydrostatic shell and seat test; dimensional drawing, material certificate and certificate of conformity available on request |
FAQ
How should this valve be configured for the application?
Select UPVC or CPVC, end connection and EPDM/FPM seal according to fluid compatibility and temperature. Final selection must be verified against the actual medium, pressure, temperature, flow direction and applicable piping standard.
Does this check or foot valve need an actuator?
No. Check and foot valves operate automatically from flow and differential pressure; select the correct cracking pressure, orientation and internal design for the service.
What documents can be supplied for a project order?
Material certificate, hydrostatic test record, dimensional drawing, packing list and certificate of conformity can be provided when specified in the order.
Do pressure and temperature ratings apply to every configuration?
No. Ratings depend on the selected body material, seat, trim, end connection and service fluid. Confirm the final pressure-temperature limit with the selected supplier before purchase.
