Globe Valves Fugitive Emission Control

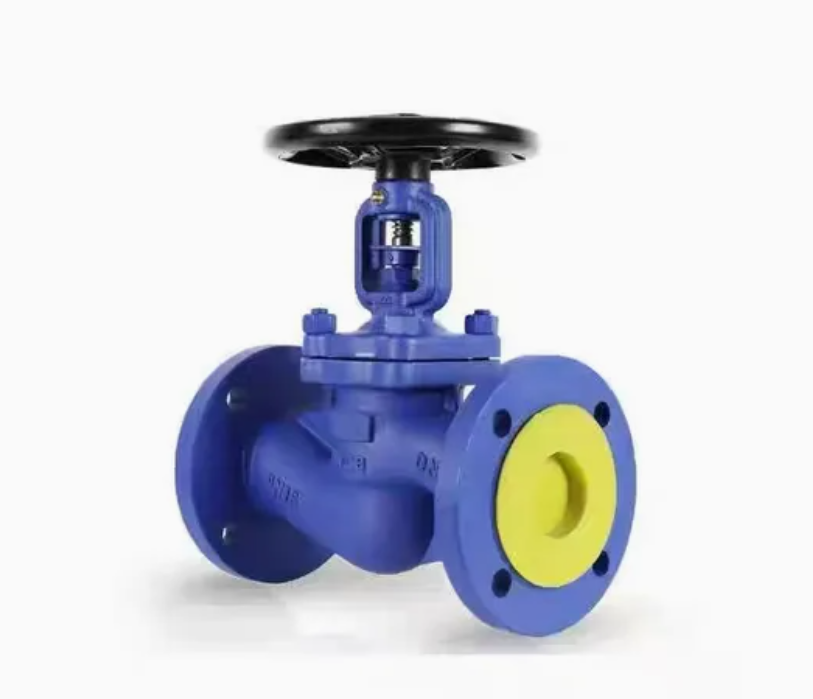

DIN Bellows Seal Globe Valve Zero Leakage Steam Chemical
Bellows Seal Globe Valve for steam, thermal oil, toxic and high-purity media, available in DN15–DN400, PN16–PN100, with Flanged or BW connections and configurable operation.
Quick Specifications
- Type
- Bellows Seal Globe Valve
- Size
- DN15–DN400
- Material
- WCB / WC6 / CF8M
- Pressure
- PN16–PN100
- Connection
- Flanged or BW
- Temperature
- -29 to 550°C
Product Details
A welded metallic bellows provides the primary dynamic stem seal and secondary packing adds backup containment. The design is suited to steam, thermal oil, toxic chemicals and vacuum systems where stem leakage must be minimized. This bellows seal globe valve is designed for steam, thermal oil, toxic and high-purity media and can be supplied in DN15–DN400 with Flanged or BW connections. Body and trim materials, seat or sealing system, operator, coating and documentation can be customized to the actual medium, pressure, temperature and project specification. Manual, gearbox, pneumatic, hydraulic or electric operation is available where technically applicable. Dimensional inspection, shell and seat pressure testing, material certificates and application-specific inspection records can be provided with the order.
Specifications
| Parameter | Value |
|---|---|
| Model | GS-GLV-BEL |
| Design Standard | EN 13709 / DIN |
| Size Range | DN15–DN400 |
| Pressure Rating | PN16–PN100 |
| Body Material | WCB / WC6 / CF8M |
| End Connection | Flanged or BW |
| Temperature Range | -29 to 550°C |
| Typical Application | Steam, thermal oil, toxic and high-purity media |
| Operation | Manual, gearbox or automated |
| Documentation | Pressure test and material reports available |
FAQ
How do you handle shipping and logistics?
We offer flexible shipping options including FOB, CIF, CFR, and DDP terms. Products are shipped via sea freight (most economical for bulk orders), air freight (for urgent/smaller orders), or courier (DHL/FedEx/UPS for samples). We handle all export documentation including commercial invoice, packing list, certificate of origin, and inspection certificates.
What is your minimum order quantity (MOQ)?
Minimum Order Quantity (MOQ) varies depending on product type and customization requirements. For standard products, the MOQ is typically 1 to 10 pieces. For OEM/ODM projects, the MOQ is typically 50 to 1000 pieces, depending on the complexity of the product. We welcome small sample orders for quality assessment.
What is the typical lead time for orders?
Standard products in stock: 7-15 days. Custom OEM orders: 30-60 days depending on specifications and quantity. We provide detailed production schedules and keep you updated throughout the manufacturing process. Rush orders can be accommodated for urgent requirements.
Need This Product for Your Project?
Send us your required size, material, pressure rating, quantity or applicable standard, and our team will review your requirement.
