How should this valve be configured for the application?

Choose ball elastomer, bore size and flange drilling to match solids content and service pressure. Final selection must be verified against the actual medium, pressure, temperature, flow direction and applicable piping standard.

Does this check or foot valve need an actuator?

No. Check and foot valves operate automatically from flow and differential pressure; select the correct cracking pressure, orientation and internal design for the service.

What documents can be supplied for a project order?

Material certificate, hydrostatic test record, dimensional drawing, packing list and certificate of conformity can be provided when specified in the order.

Do pressure and temperature ratings apply to every configuration?

No. Ratings depend on the selected body material, seat, trim, end connection and service fluid. Confirm the final pressure-temperature limit with the selected supplier before purchase.

Zhengzhou, CN [email protected]

24/7 Support | EN / 中文

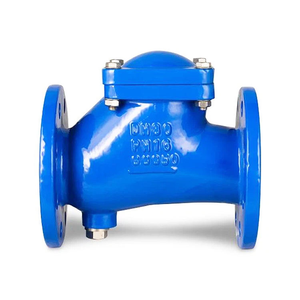

Flanged Ball Check Valve, Ductile Iron, PN10/16

Industrial Valves & Actuators Check & Foot Valves

Check & Foot Valves

Flanged Ball Check Valve, Ductile Iron, PN10/16

Ductile iron flanged ball check valve for PN10/16 wastewater and slurry service.

Quick Specifications

Type Flanged ball check valve

Size DN50-DN600 (NPS 2-24)

Material Ductile iron body; rubber-coated ball; EPDM/NBR sealing components

Pressure PN10 / PN16

Connection EN 1092-2 PN10/16 flanged ends

Temperature -10 to 80 °C with rubber-coated ball; confirm selected elastomer

Request Quote Quick Inquiry on WhatsApp

Product Overview

A full-bore ball check valve in which the ball moves away from the seat under forward flow and returns by back pressure or gravity. The design is commonly selected for fluids containing suspended solids and for low-maintenance wastewater duty.

Parameter	Value
Model	BCV-DI-PN10/16
Design Standard	EN 12334; EN 12266-1 test
Size Range	DN50-DN600 (NPS 2-24)
Pressure Rating	PN10 / PN16
Body Material	Ductile iron body; rubber-coated ball; EPDM/NBR sealing components
End Connection	EN 1092-2 PN10/16 flanged ends
Temperature Range	-10 to 80 °C with rubber-coated ball; confirm selected elastomer
Typical Application	Wastewater, sewage, slurry and viscous-water services
Operation	Automatic free-ball non-return operation
Inspection & Documentation	Hydrostatic shell and seat test; dimensional drawing, material certificate and certificate of conformity available on request
