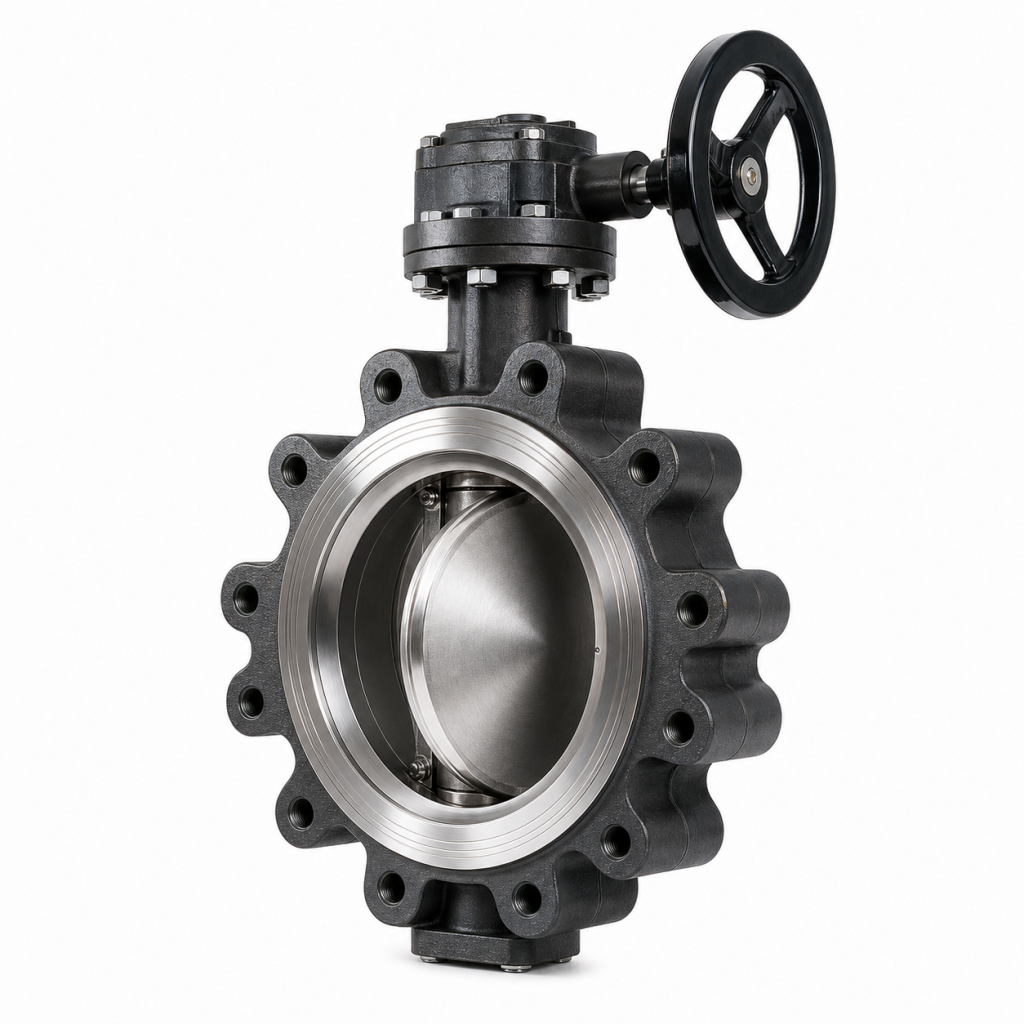

Fire-Safe Triple-Offset Butterfly Valve, Up to Class 600

Triple Offset Butterfly Valve for Refinery, petrochemical, steam and critical isolation. 3–64 in | Class 150–600 | Wafer, Lug or Flanged.

Quick Specifications

Type: Triple Offset Butterfly Valve
Size: 3–64 in
Material: WCB / CF8M / WC6
Pressure: Class 150–600
Connection: Wafer, Lug or Flanged
Temperature: -196 to 600°C

Request a Quote WhatsApp

Product Details

Triple-offset geometry eliminates rubbing between the laminated seal ring and body seat except at final closure. The torque-seated metal sealing system is suitable for high-temperature, high-pressure and fire-safe process isolation with low fugitive-emission packing options. This triple offset butterfly valve is designed for refinery, petrochemical, steam and critical isolation and can be supplied in 3–64 in with Wafer, Lug or Flanged connections. Body and trim materials, seat or sealing system, operator, coating and documentation can be customized to the actual medium, pressure, temperature and project specification. Manual, gearbox, pneumatic, hydraulic or electric operation is available where technically applicable. Dimensional inspection, shell and seat pressure testing, material certificates and application-specific inspection records can be provided with the order.

Specifications

Parameter	Value
Model	GS-BFV-TO600
Design Standard	API 609 / ASME B16.34
Size Range	3–64 in
Pressure Rating	Class 150–600
Body Material	WCB / CF8M / WC6
End Connection	Wafer, Lug or Flanged
Temperature Range	-196 to 600°C
Typical Application	Refinery, petrochemical, steam and critical isolation
Operation	Manual, gearbox or automated
Documentation	Pressure test and material reports available

FAQ

How do you handle shipping and logistics?

We offer flexible shipping options including FOB, CIF, CFR, and DDP terms. Products are shipped via sea freight (most economical for bulk orders), air freight (for urgent/smaller orders), or courier (DHL/FedEx/UPS for samples). We handle all export documentation including commercial invoice, packing list, certificate of origin, and inspection certificates.

What is your minimum order quantity (MOQ)?

Minimum Order Quantity (MOQ) varies depending on product type and customization requirements. For standard products, the MOQ is typically 1 to 10 pieces. For OEM/ODM projects, the MOQ is typically 50 to 1000 pieces, depending on the complexity of the product. We welcome small sample orders for quality assessment.

What is the typical lead time for orders?

Standard products in stock: 7-15 days. Custom OEM orders: 30-60 days depending on specifications and quantity. We provide detailed production schedules and keep you updated throughout the manufacturing process. Rush orders can be accommodated for urgent requirements.
