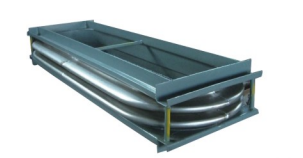

Rounded-Corner Double-Wave Compensator
Rounded-corner double-wave compensator; 2000×1800–4500×3000 mm; Confirm by engineered selection.
Quick Specifications
- Type
- Rounded-corner double-wave compensator
- Size
- 2000×1800–4500×3000 mm
- Material
- Metal bellows with steel frame and liner
- Pressure
- Confirm by engineered selection
- Connection
- Welded / flanged frame
- Temperature
- By material selection
Product Details
Large rectangular double-wave bellows compensator for ductwork. Key configuration must be confirmed against the actual medium, design pressure, design temperature, connection standard and installation conditions.
Specifications
| Parameter | Value |
|---|---|
| Model | D-LD2000 |
| Product Family | Metal bellows compensator |
| Size Range | 2000×1800–4500×3000 mm |
| Pressure Rating | Confirm by engineered selection |
| Body / Main Material | Metal bellows with steel frame and liner |
| End Connection | Welded / flanged frame |
| Temperature Range | By material selection |
| Typical Application | Large rectangular double-wave bellows compensator for ductwork. |
| Ordering Notes | Confirm selected size, connection, material, pressure-temperature limit and required certification before order. |
| Catalog Reference | Catalog p. 44 |
FAQ
What should be confirmed before ordering?
Confirm size, connection, material, medium, pressure, temperature and installation conditions against the final project requirement.
Are the listed ratings applicable to every size?
No. Ratings and dimensions vary by model, size, material and end connection. Use the supplier drawing and final technical data for confirmation.
Can materials and dimensions be customized?
The catalog lists standard ranges. Material, connection and dimensions may be supplied to project requirements after technical confirmation.
Which documents can be requested?
Dimensional drawing, material information, inspection record and packing documentation can be requested with the order.
