Actuators & Accessories Shuttle Valve

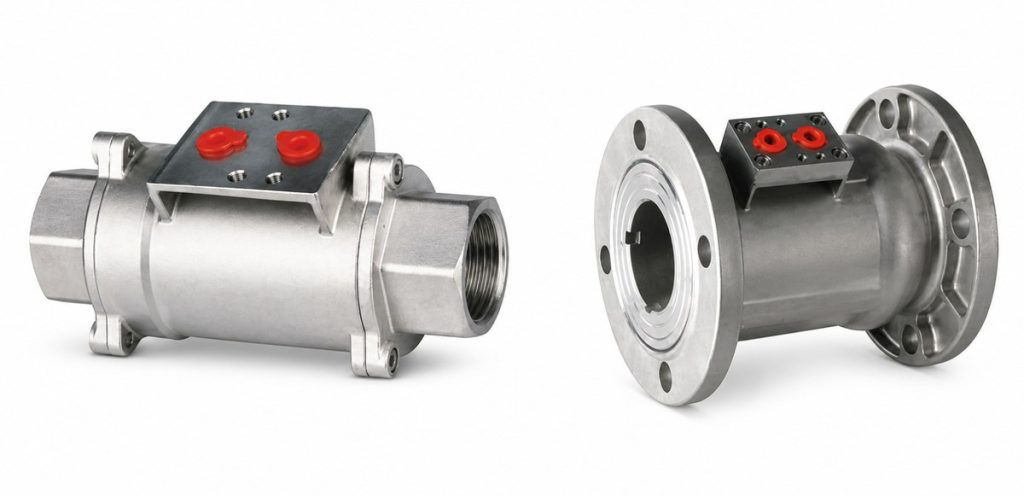

Pneumatic Shuttle Valve 20040 Series
Compact pneumatic shuttle valve with fast operation and resistance to vacuum.
Quick Specifications
- Type
- Pneumatic Shuttle Valve
- Size
- DN10-DN100
- Material
- Stainless steel
- Pressure
- 0-1.6 MPa
- Connection
- G3/8-G2 / Flanged
- Temperature
- -20°C to +150°C
Product Details
The 20040 series is a double-acting pneumatic shuttle valve range for fluid control. Threaded and flanged connections are listed across the DN10-DN100 series range.
Series configurations
The following choices are listed for this series. Availability depends on the selected model and configuration; the options are not a single combined specification.
- Actuation: Double acting
- Seal Material: FKM / EPDM
Published operating details
- Size Range: DN10-DN100
- Working Pressure: 0-1.6 MPa
- Control Pressure: 0.3-0.8 MPa
- Connection: G3/8-G2 / Flanged
- Temperature: -20°C to +150°C
The fluid-temperature entry above is separate from the listed ambient range of -20°C to +80°C. Confirm the connection, sealing material and control-air conditions for the selected size.
Specifications
| Parameter | Value |
|---|---|
| Type | Pneumatic Shuttle Valve |
| Size | DN10-DN100 |
| Material | Stainless steel |
| Pressure | 0-1.6 MPa |
| Connection | G3/8-G2 / Flanged |
| Temperature | -20°C to +150°C |
| Model | 20040 series |
| Actuation | Double acting |
| Size Range | DN10-DN100 |
| Working Pressure | 0-1.6 MPa |
| Control Pressure | 0.3-0.8 MPa |
| Seal Material | FKM / EPDM |
| Connection | G3/8-G2 / flanged |
| Control Fluid | Neutral gas / air |
| Ambient Temperature | -20°C to +80°C |
| Application | Pneumatic shuttle control |
