Butterfly Valves Hydraulic Control

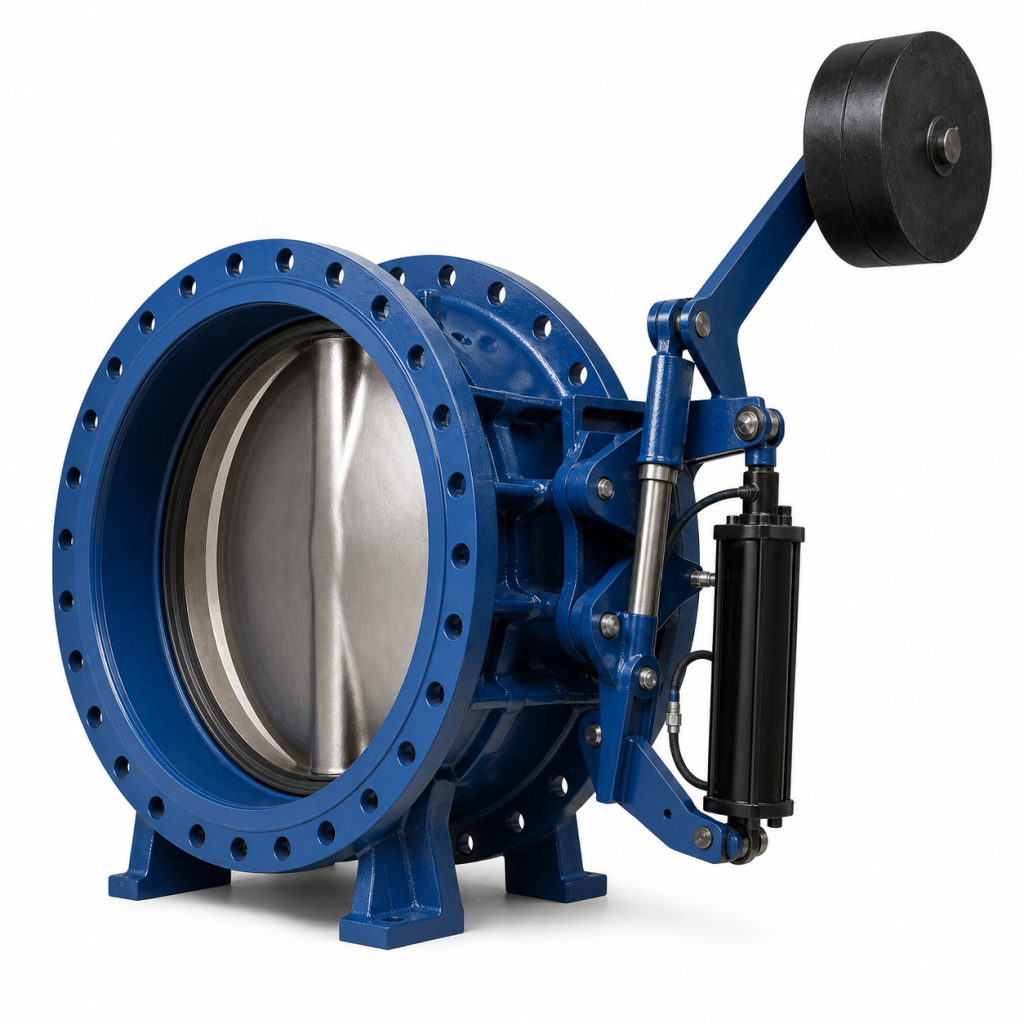

Hydraulic Large-Diameter Butterfly Valve with Counterweight
Hydraulic Butterfly Valve for Hydropower, pump discharge and surge protection. DN300–DN3000 | PN6–PN25 | Double Flanged.
Quick Specifications
- Type
- Hydraulic Butterfly Valve
- Size
- DN300–DN3000
- Material
- Ductile Iron / Fabricated Steel
- Pressure
- PN6–PN25
- Connection
- Double Flanged
- Temperature
- 0 to 100°C
Product Details
A hydraulic cylinder and optional counterweight provide controlled opening and staged closing for pump-discharge and hydropower systems. Adjustable closing curves help reduce water hammer, while large bearings and rigid flanged construction handle demanding pipeline loads. This hydraulic butterfly valve is designed for hydropower, pump discharge and surge protection and can be supplied in DN300–DN3000 with Double Flanged connections. Body and trim materials, seat or sealing system, operator, coating and documentation can be customized to the actual medium, pressure, temperature and project specification. Manual, gearbox, pneumatic, hydraulic or electric operation is available where technically applicable. Dimensional inspection, shell and seat pressure testing, material certificates and application-specific inspection records can be provided with the order.
Specifications
| Parameter | Value |
|---|---|
| Model | GS-BFV-HYD |
| Design Standard | EN 593 / AWWA options |
| Size Range | DN300–DN3000 |
| Pressure Rating | PN6–PN25 |
| Body Material | Ductile Iron / Fabricated Steel |
| End Connection | Double Flanged |
| Temperature Range | 0 to 100°C |
| Typical Application | Hydropower, pump discharge and surge protection |
| Operation | Hydraulic with counterweight |
| Documentation | Pressure test and material reports available |
FAQ
How do you handle shipping and logistics?
We offer flexible shipping options including FOB, CIF, CFR, and DDP terms. Products are shipped via sea freight (most economical for bulk orders), air freight (for urgent/smaller orders), or courier (DHL/FedEx/UPS for samples). We handle all export documentation including commercial invoice, packing list, certificate of origin, and inspection certificates.
What is your minimum order quantity (MOQ)?
Minimum Order Quantity (MOQ) varies depending on product type and customization requirements. For standard products, the MOQ is typically 1 to 10 pieces. For OEM/ODM projects, the MOQ is typically 50 to 1000 pieces, depending on the complexity of the product. We welcome small sample orders for quality assessment.
What is the typical lead time for orders?
Standard products in stock: 7-15 days. Custom OEM orders: 30-60 days depending on specifications and quantity. We provide detailed production schedules and keep you updated throughout the manufacturing process. Rush orders can be accommodated for urgent requirements.
Need This Product for Your Project?
Send us your required size, material, pressure rating, quantity or applicable standard, and our team will review your requirement.
