What should be confirmed before ordering?

Confirm size, connection, material, medium, pressure, temperature and installation conditions against the final project requirement.

Are the listed ratings applicable to every size?

No. Ratings and dimensions vary by model, size, material and end connection. Use the supplier drawing and final technical data for confirmation.

Can materials and dimensions be customized?

The catalog lists standard ranges. Material, connection and dimensions may be supplied to project requirements after technical confirmation.

Which documents can be requested?

Dimensional drawing, material information, inspection record and packing documentation can be requested with the order.

Zhengzhou, CN [email protected]

24/7 Support | EN / 中文

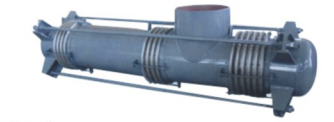

Curved Pipe Pressure Balance Compensator

Pipes Fittings & Flanges Expansion Joints

Expansion Joints

Curved Pipe Pressure Balance Compensator

Curved-pipe pressure balance compensator; DN700–DN2000; Design pressure 0.2 MPa.

Quick Specifications

Type Curved-pipe pressure balance compensator

Size DN700–DN2000

Material Metal bellows, balance bellows, pull rods and guide structure

Pressure Design pressure 0.2 MPa

Connection Welded / flanged

Temperature Working temperature ≤150 °C

Request Quote Quick Inquiry on WhatsApp

Product Overview

Pressure-balanced compensator for bends at pump, vessel, compressor and turbine outlets. Key configuration must be confirmed against the actual medium, design pressure, design temperature, connection standard and installation conditions.

Parameter	Value
Model	BQYP
Product Family	Pressure-balanced compensator
Size Range	DN700–DN2000
Pressure Rating	Design pressure 0.2 MPa
Body / Main Material	Metal bellows, balance bellows, pull rods and guide structure
End Connection	Welded / flanged
Temperature Range	Working temperature ≤150 °C
Typical Application	Pressure-balanced compensator for bends at pump, vessel, compressor and turbine outlets.
Ordering Notes	Confirm selected size, connection, material, pressure-temperature limit and required certification before order.
Catalog Reference	Catalog p. 52
