Expansion Joints Rubber Joint

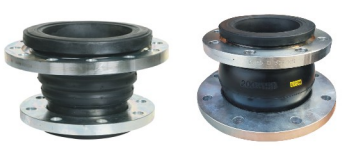

Concentric Reducing Rubber Joint
Concentric reducing flexible rubber joint; DN50×32–DN600×500; PN1.0 / PN1.6 / PN2.5 MPa.
Quick Specifications
- Type
- Concentric reducing flexible rubber joint
- Size
- DN50×32–DN600×500
- Material
- Reinforced rubber with carbon steel, stainless steel or PVC flanges
- Pressure
- PN1.0 / PN1.6 / PN2.5 MPa
- Connection
- Flanged
- Temperature
- −15 to 115 °C; special service −30 to 250 °C
Product Details
Flexible concentric reducer for aligned changes in pipe diameter. Key configuration must be confirmed against the actual medium, design pressure, design temperature, connection standard and installation conditions.
Specifications
| Parameter | Value |
|---|---|
| Model | KYT |
| Product Family | Rubber expansion joint |
| Size Range | DN50×32–DN600×500 |
| Pressure Rating | PN1.0 / PN1.6 / PN2.5 MPa |
| Body / Main Material | Reinforced rubber with carbon steel, stainless steel or PVC flanges |
| End Connection | Flanged |
| Temperature Range | −15 to 115 °C; special service −30 to 250 °C |
| Typical Application | Flexible concentric reducer for aligned changes in pipe diameter. |
| Ordering Notes | Confirm selected size, connection, material, pressure-temperature limit and required certification before order. |
| Catalog Reference | Catalog p. 7 |
FAQ
What should be confirmed before ordering?
Confirm size, connection, material, medium, pressure, temperature and installation conditions against the final project requirement.
Are the listed ratings applicable to every size?
No. Ratings and dimensions vary by model, size, material and end connection. Use the supplier drawing and final technical data for confirmation.
Can materials and dimensions be customized?
The catalog lists standard ranges. Material, connection and dimensions may be supplied to project requirements after technical confirmation.
Which documents can be requested?
Dimensional drawing, material information, inspection record and packing documentation can be requested with the order.
