Actuators & Accessories Solenoid Valve

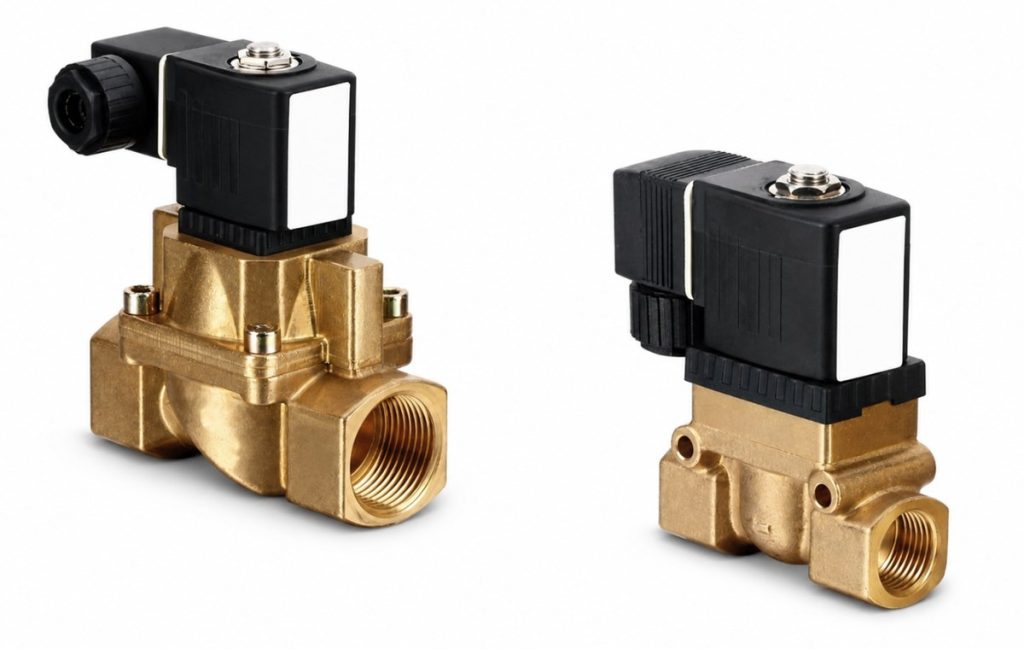

2/2-Way 180°C Solenoid Valve 4231
High-temperature 2/2-way guide-type solenoid valve with PTFE sealing for 180°C fluid service.
Quick Specifications
- Type
- 2/2-way Guide Type
- Size
- DN13-DN25
- Material
- Brass
- Pressure
- 0.1-1.6 MPa
- Connection
- G1/4-G1
- Temperature
- -10°C to +180°C
Product Details
The 4231 series is a brass solenoid valve range for neutral gases and liquids at elevated temperatures. PTFE sealing and a DN13-DN25 orifice range are listed in the existing specification.
Series configurations
The following choices are listed for this series. Availability depends on the selected model and configuration; the options are not a single combined specification.
- Control Type: NC / NO
- Body Material: Brass
- Seal Material: PTFE
- Voltage: AC220V / AC110V / DC24V
Published operating details
- Orifice: DN13-DN25
- Pressure Rating: 0.1-1.6 MPa
- Thread Port: G1/4-G1
- Temperature: -10°C to +180°C
Confirm the selected size, connection, control configuration and applicable operating limits before ordering.
Specifications
| Parameter | Value |
|---|---|
| Type | 2/2-way Guide Type |
| Size | DN13-DN25 |
| Material | Brass |
| Pressure | 0.1-1.6 MPa |
| Connection | G1/4-G1 |
| Temperature | -10°C to +180°C |
| Model | 4231 |
| Control Type | NC / NO |
| Orifice | DN13-DN25 |
| Flow Coefficient | Kv 1.5-9.8 m³/h |
| Pressure Rating | 0.1-1.6 MPa |
| Body Material | Brass |
| Seal Material | PTFE |
| Thread Port | G1/4-G1 |
| Voltage | AC220V / AC110V / DC24V |
| Protection Class | IP65 |
